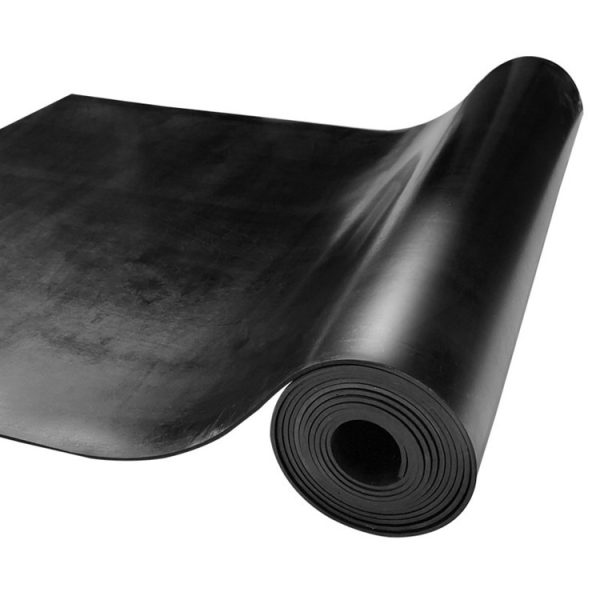

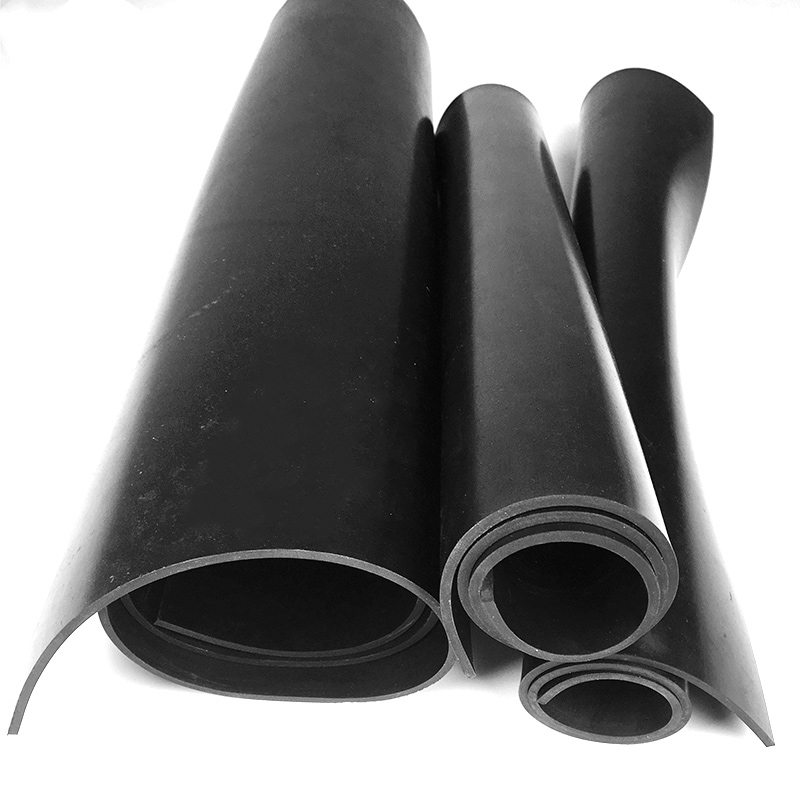

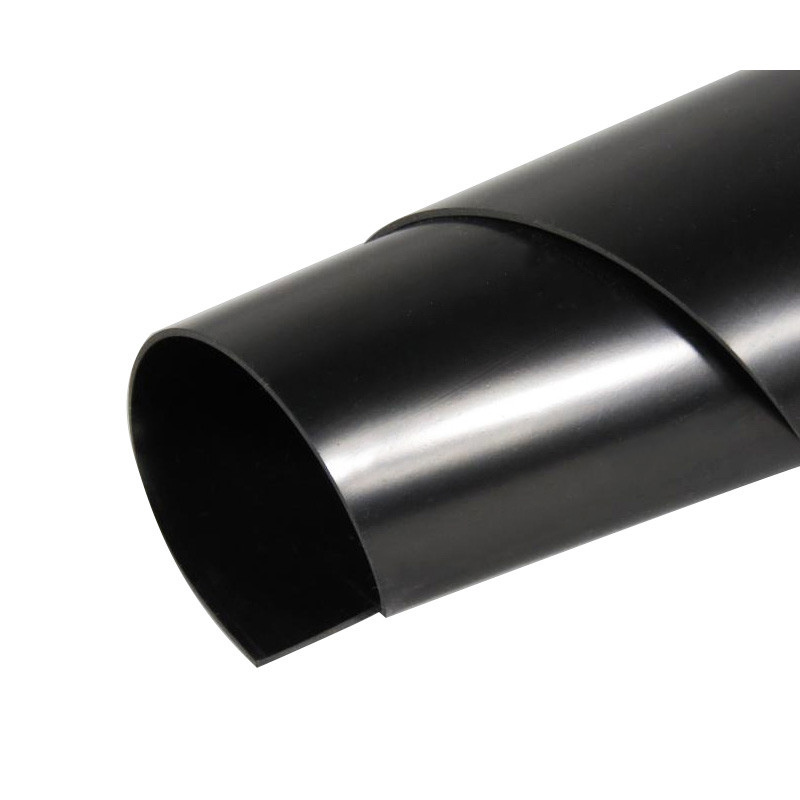

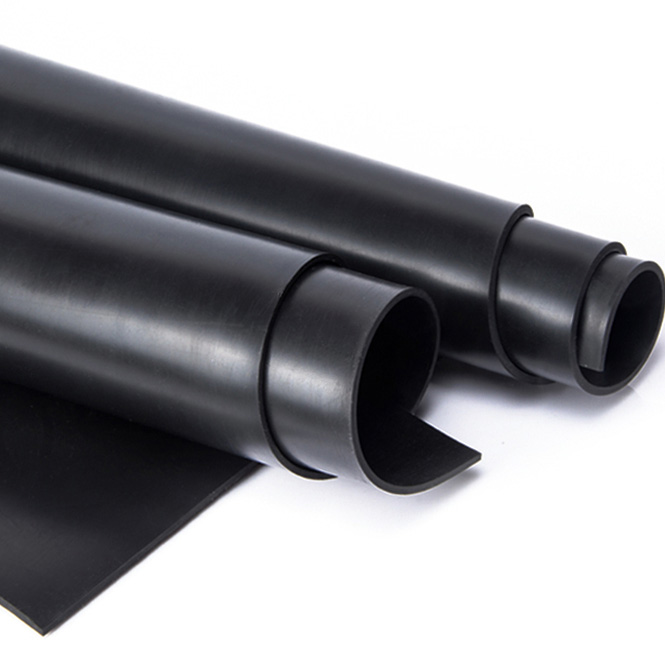

EPDM Rubber Sheets

BENEFITS

EPDM Rubber Sheet is a high-grade rubber sheet with an excellent price and performance ratio.

The rubber sheet has good resistance to ozone, strong bases, and weathering in general.

Rubber sheets can be delivered by the meter or as customized gaskets.

The rubber sheet is SVHC free.

MATERIAL

Specification

Material No.: JREPDM157001
Mechanical Properties			Value	Unit
Density			1.5	g/cm³
Hardness			70 +/-5	Shore A
Tensile strength			3	MPA
Elongation			300	%
Color			Black
Surface			Smooth
EPDM rubber content in total polymer			10	%
Compression set (22hrs at 70°C)			50	% Max
Tear resistance			18	kg/cm
Abrasion resistance (<60 0.5 kg >60 1 kg)			200	mm³
Tension Set			10	%
	Change in hardness		10	Shore A(Max)
	Change in tensile		-25	% Max
Heat Aging (70°C,72h)	Change in elongation		-30	% Max
	Change in tear strength		-10	kN/m
	Change in linear dimension		+/-2	%
Thermal Properties		Value		Unit
General Temperature Range		-40 to 110		°C
Minimum for Continuous Use (Static)		-40		°C
Brittle Point		-50		°C
Maximum for Continuous Use (Static)		100		°C
