DN015~800 – NBR

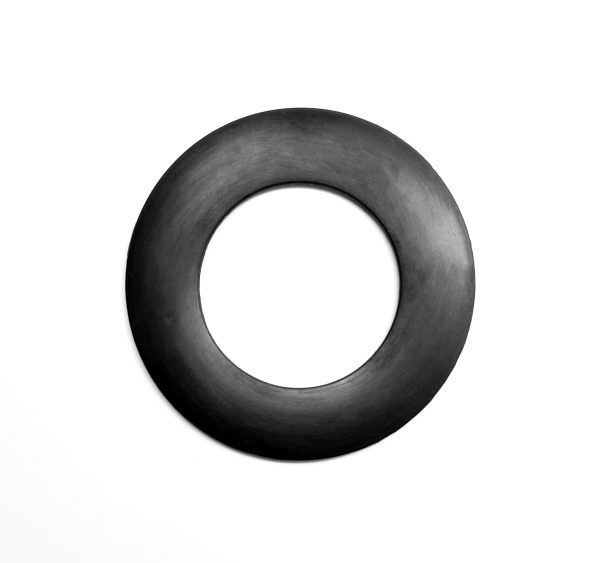

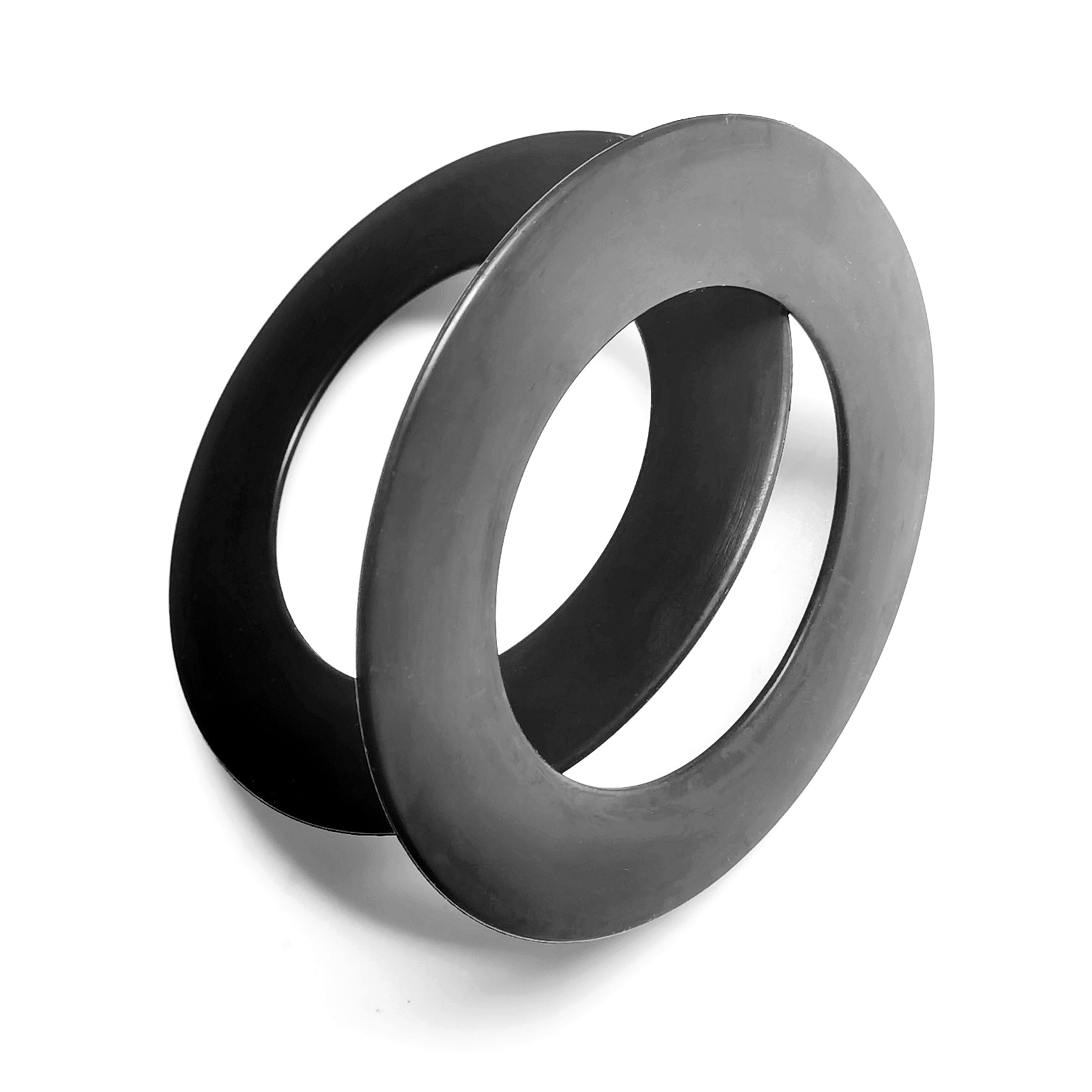

NBR Rubber-Steel gaskets consist of an NBR part along with a core of steel. The rubber part is firmly vulcanized to the core of steel in order to add stability to the gasket.
The ring in the core of the gasket ensures the absorption of good surface pressure and supports the centering of the gasket in the flange.
NBR Rubber-Steel gaskets are used in flange systems for gas pipelines with EN682 gas certification.
Specification
| Item Code | Description |
| DN015-NBR | NBR70/ST 22x51x4mm DN15 PN40,DIN ISO 2768-1/C,EN682,15g, NBR7008 |
| DN020-NBR | NBR70/ST 27x61x4mm DN20 PN40,DIN ISO 2768-1/C,EN682,20g, NBR7008 |
| DN025-NBR | NBR70/ST 34x71x4mm DN25 PN40,DIN ISO 2768-1/C,EN682,20.25g, NBR7008 |
| DN032-NBR | NBR70/ST 43x82x4mm DN32 PN10-40,DIN ISO 2768-1/C,EN682,25g, NBR7008 |
| DN040-NBR | NBR70/ST 49x92x4mm DN40 PN40,DIN ISO 2768-1/C,EN682,31.6g, NBR7008 |
| DN050-NBR | NBR70/ST 61x107x4mm DN50 PN40,DIN ISO 2768-1/C,EN682,39.9g, NBR7008 |
| DN065-NBR | NBR70/ST 77x127x4mm DN65 PN40,DIN ISO 2768-1/C,EN682,56.5g, NBR7008 |
| DN080-NBR | NBR70/ST 89x142x4mm DN80 PN40,DIN ISO 2768-1/C,EN682,66.8g, NBR7008 |
| DN100-NBR | NBR70/ST 115x162x5mm DN100 PN16,DIN ISO 2768-1/C,EN682,74.3g, NBR7008 |
| DN125-NBR | NBR70/ST 141x192x5mm DN125 PN16,DIN ISO 2768-1/C,EN682,102.5g, NBR7008 |
| DN150-NBR | NBR70/ST 169x218x5mm DN150 PN16,DIN ISO 2768-1/C,EN682,109.5g, NBR7008 |
| DN200-NBR | NBR70/ST 220x273x6mm DN200 PN16,DIN ISO 2768-1/C,EN682,169.4g, NBR7008 |
| DN250-NBR | NBR70/ST 273x328x6mm DN250 PN10,DIN ISO 2768-1/C,EN682,243.9g, NBR7008 |
| DN300-NBR | NBR70/ST 324x378x6mm DN300 PN10,DIN ISO 2768-1/C,EN682,283.3g, NBR7008 |
| DN350-NBR | NBR70/ST 356x438x7mm DN350 PN10,DIN ISO 2768-1/C,EN682,538g, NBR7008 |
| DN400-NBR | NBR70/ST 407x489x7mm DN400 PN10,DIN ISO 2768-1/C,EN682,615g, NBR7008 |
| DN450-NBR | NBR70/ST 458x539x7mm DN450 PN10,DIN ISO 2768-1/C,EN682,660g, NBR7008 |
| DN500-NBR | NBR70/ST 508x594x7mm DN500 PN10,DIN ISO 2768-1/C,EN682,680g, NBR7008 |
| DN600-NBR | NBR70/ST 610x695x7mm DN600 PN10,DIN ISO 2768-1/C,EN682,715g, NBR7008 |
| DN700-NBR | NBR70/ST 712x810x8mm DN700 PN10,DIN ISO 2768-1/C,EN682,915g, NBR7008 |
| DN800-NBR | NBR70/ST 813x917x8mm DN800 PN10,DIN ISO 2768-1/C,EN682,1015g, NBR7008 |
