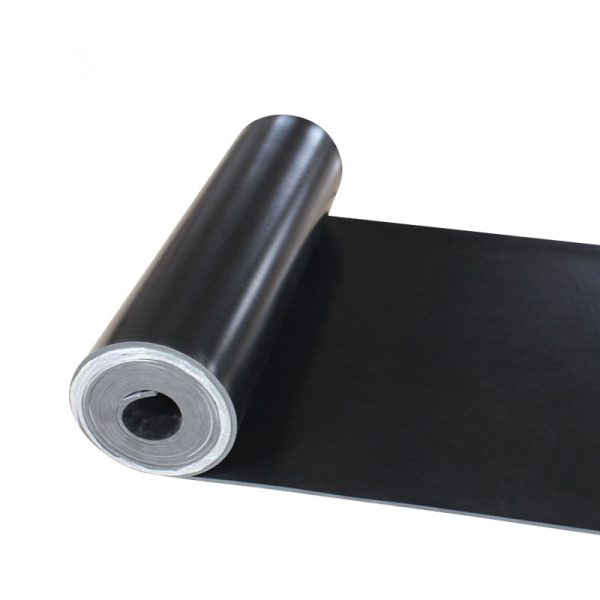

CR Rubber Sheets

BENEFITS

The CR rubber sheet is made of high-grade rubber and is resistant to most aliphatic oils. The sheet is non-resistant to aromatic oils.

The rubber sheet can be delivered by the meter or as customized gaskets.

The rubber sheet is SVHC free.

MATERIAL

Specification

Material No.: JRCR156501
Mechanical Properties			Value	Unit
Density			1.5	g/cm³
Hardness			65 +/-5	Shore A
Tensile strength			3	MPA
Elongation			250	%
Color			Black
Surface			Smooth
Neoprene rubber content in total polymer			10	%
Compression set (22hrs at 70°C)			40	% Max
Tear resistance			18	kg/cm
Abrasion resistance (<60 0.5 kg >60 1 kg)			200	mm³
Tension Set			10	%
Oxygen Index			≥28	%
	Change in hardness		5	Shore A(Max)
Heat Aging (70°C,72h)	Change in tensile		-0.4	% Max
	Change in elongation		-0.4	% Max
Thermal Properties		Value		Unit
General Temperature Range		-20 to 100		°C
Minimum for Continuous Use (Static)		-20		°C
Brittle Point		-30		°C
Maximum for Continuous Use (Static)		100		°C
